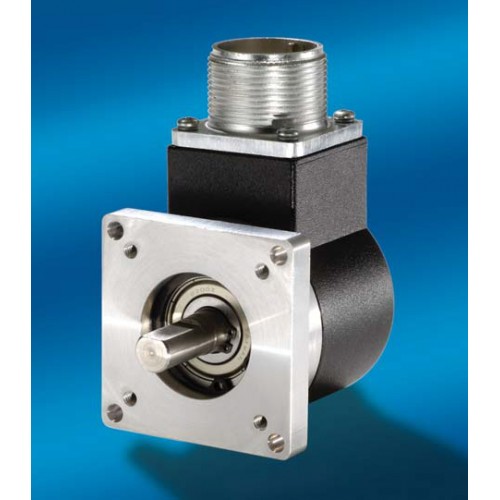

British Encoder 702 Incremental Standard Shaft Encoder

Brand: British Encoder

The Model 702 Size 20 is a heavy duty, extremely rugged, reliable, yet compact industry standard 50.80mm" diameter encoder designed for harsh factory and plant floor environments. The double shielded ball bearings are rated at 35Kgm maximum axial and radial shaft loading to ensure a long operating life.

Made to withstand the harsh effects of the real world, both the flange and servo models can be rated to IP66 with the optional heavy duty shaft seal.

Common applications: Motion Control Feedback, Conveyors, Elevator Controls, Machine Control, Food Processing, Process Control, Robotics, Material Handling, Textile Machines.


SPECIFICATIONS AND FEATURES

  • Standard Size 20 Package (50mm x 50mm)
  • Flange, and Servo Mounting
  • Up to 30,000 PPR
  • 35 kg Max. Axial and Radial Shaft Loading
  • IP65 Sealing Available

  • British Encoder 702 Incremental Standard Shaft Encoder

If you would like more information on British Encoder 702 Incremental Standard Shaft Encoder or any of our other products please call us on 01733 233481 or send an email to sales@digitalcontrols.biz
