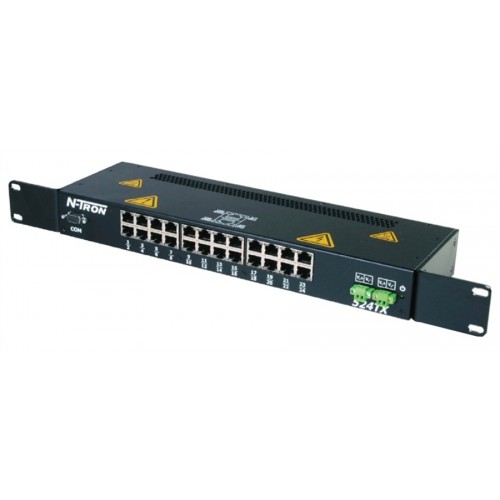

Red Lion N-Tron® 500 Series Unmanaged Switches

Brand: Red Lion

Red Lion's N-Tron® 500 series unmanaged Ethernet switches offer high reliability, up to 26 ports of connectivity, and options for DIN-rail mountable or rack mounting. The 500 series offers excellent EMI protection and are housed in metal enclosures. These switches are also available with N-View™ monitoring technology, which can be found in our Monitored family of products, or with advanced Ethernet management features including VLAN, IGMP Snooping, QoS, trunking and port mirroring, which can be found in our Managed family of products.

Connectivity:

The 500 series unmanaged switches feature between 8 and 26 ports, offering 10/100BaseT(X) port speeds. These unmanaged switches provide copper and fiber port combinations for maximum deployment flexibility.

Performance:

The 500 series of unmanaged switches include redundant power inputs, plug-and-play operation and provide best-in-class performance in harsh environments.

Environmental:

The 500 series of unmanaged switches are housed in a DIN-rail mountable enclosure, and offer a wide operating temperature range of -40° to 85°C. With UL Class I, Div. 2 listing, CE and IEC 1613 certifications, these switches are built to last in the most demanding applications.  


Products Available


Part Number

Total Ports

10 / 100

100 Fibre

Operating Temp

Power Input

IP Rating

Mounting-Case

508TX

8 8 -

-40˚ to 85˚C

10-30VDC

IP20

DIN Rail - Metal

508FX

8 6 2

-40˚ to 85˚C

10-30VDC

IP20

DIN Rail - Metal

509FX

9 8 1

-40˚ to 85˚C

10-30VDC

IP20

DIN Rail - Metal

516TX

16 16 -

-40˚ to 85˚C

10-30VDC

IP20

DIN Rail - Metal

517FX

17 16 1

-40˚ to 85˚C

10-30VDC

IP20

DIN Rail - Metal

524TX

24 24 -

-40˚ to 85˚C

10-30VDC

IP20

Rackmount - Metal

526FX

26 24 2

-40˚ to 85˚C

10-30VDC

IP20

Rackmount - Metal
