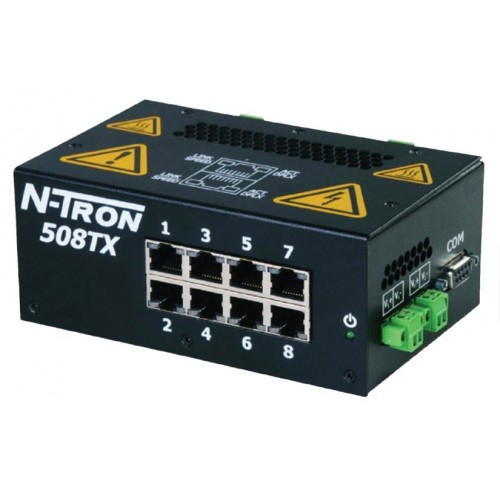

Red Lion N-Tron® 500-A Series Process Control Switches

Brand: Red Lion

Red Lion's N-Tron® 500-A series industrial Ethernet switches offer up to 26 ports of Fast Ethernet connectivity and are specifically designed to meet the requirements of mission critical PLC and process control applications. Designed for plug-and-play performance with EtherNet/IP, Modbus TCP and PROFINET applications, the 500-A series monitored switches provide best-in-class reliable connectivity. The 500-A series offers N-View™ monitoring technology, IGMP snooping, VLAN, QoS, port control, trunking and port mirroring required by many advanced I/O control applications.

Connectivity:

The 500-A series monitored switches feature between 8 and 26 ports, offering 10/100Base-T(X) port speeds. These monitored switches provide copper and fibre port combinations for maximum deployment flexibility.

Performance:

The 500-A series of monitored switches provide uncompromising performance in harsh environments including features like redundant power inputs, plug-and-play operation and N-View monitoring technology. These networking features provide best-in-class uptime performance.

Monitoring:

The 500-A series provides N-View advanced network performance monitoring technology. N-View provides 47 different status points on switch and port conditions and displays that information on a networked computer using the N-View Windows application. The N-View OPC server application also allows integration with third-party OPC Client applications.

Environmental:

The 500-A series of monitored switches are housed in DIN-rail mountable metal enclosures and offer a wide operating temperature range of -40° to +85°C. With UL Class I, Div. 2 listing, CE certifications and TS1/TS2, IEC 61850-3 and IEC 1613 compliance, these switches are built to last in the most demanding environments.


Products Available


Part Number

Total Ports

10 / 100

100 Fibre

Operating Temp

Power Input

IP Rating

Mounting-Case

508TX-A

862

-40˚ to 85˚C

10-30VDC

IP20

DIN Rail - Metal

508FX-A

88-

-40˚ to 85˚C

10-30VDC

IP20

DIN Rail - Metal

509FX-A

981

-40˚ to 85˚C

10-30VDC

IP20

DIN Rail - Metal

516TX-A

1616-

-40˚ to 85˚C

10-30VDC

IP20

DIN Rail - Metal

517FX-A

17161

-40˚ to 85˚C

10-30VDC

IP20

DIN Rail - Metal

524TX-A

2424-

-40˚ to 85˚C

10-30VDC

IP20

Rackmount - Metal

526FX-A

26242

-40˚ to 85˚C

10-30VDC

IP20

Rackmount - Metal


  • Red Lion N-Tron® 500-A Series Process Control Switches

If you would like more information on Red Lion N-Tron® 500-A Series Process Control Switches or any of our other products please call us on 01733 233481 or send an email to sales@digitalcontrols.biz
